Temperature Sensor Type BP2

Download product sheet in PDF
Contact sales

Find your local partner on the distributor map.

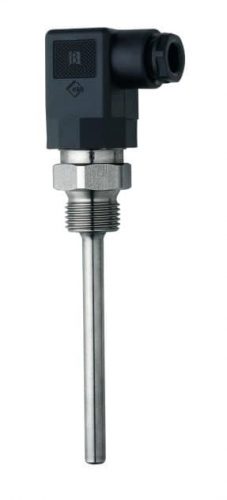

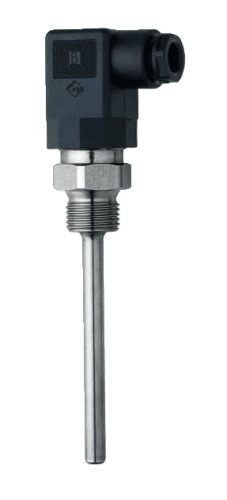

Type BP2 temperature sensor with valve plug connection and interchangeable measuring insert

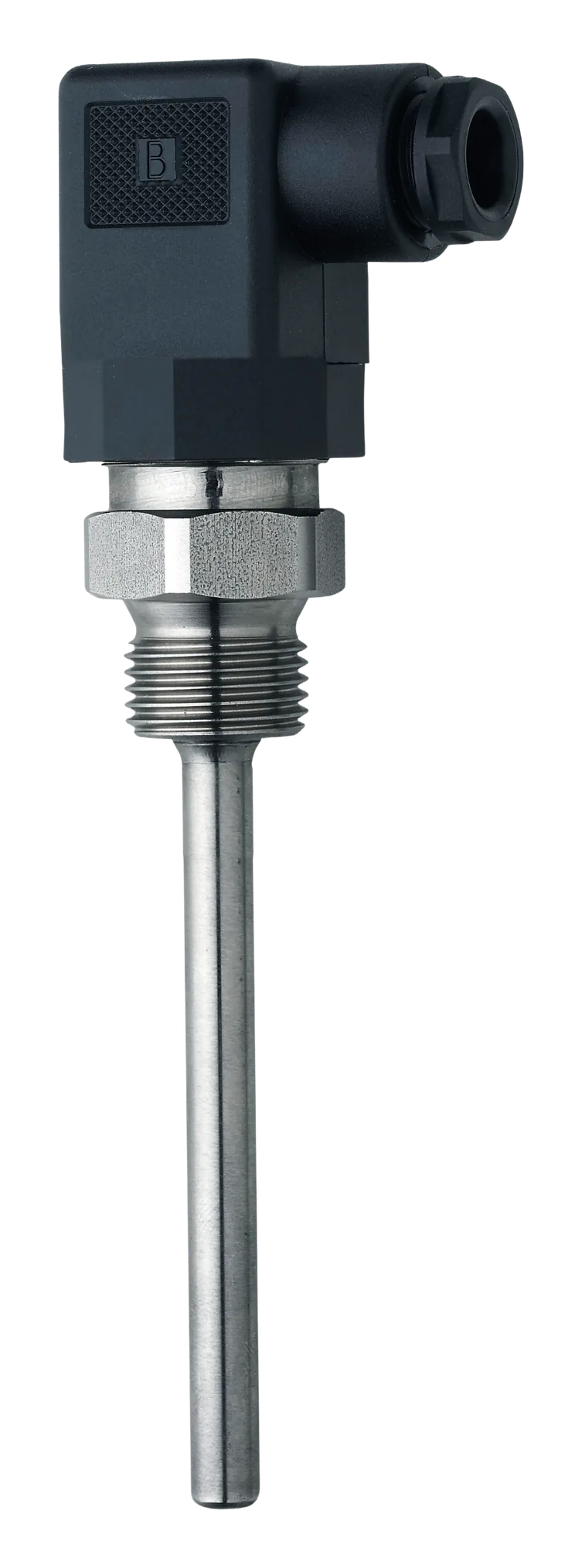

Type BP2 temperature sensor – valve plug connection, interchangeable insert

Application

Type BP2 is an industrial temperature sensor with a valve plug connection (DIN EN 175301-803-A) and an interchangeable measuring insert – built for fast electrical connect and disconnect with a secure fixing of the cable. Marine approved by DNV, LR, BV, ABS, NK and RINA.

What is the Type BP2 temperature sensor used for?

The Type BP2 measures temperatures of liquid and gaseous media up to 250 °C. It is typically applied in processing plants, the shipping industry, refrigeration, the engineering industry and the energy sector.

Why a valve plug instead of a terminal head?

The valve plug (DIN EN 175301-803-A, formerly DIN 43650-A; PG9 or PG11, IP65) lets the sensor couple and uncouple electrically in one quick operation while the cable stays securely fixed – practical where sensors are serviced or exchanged frequently.

Can the measuring insert be replaced without stopping the system?

Yes. The measuring insert can be replaced or calibrated without shutting down the system.

Is the sensor approved for marine applications?

Yes. The Type BP2 is marine approved by DNV, LR, RINA, ABS, NK and BV.

What types of systems typically use this sensor?

  • ✓ Marine systems
  • ✓ Refrigeration plants
  • ✓ Processing plants
  • ✓ Engineering and OEM machinery
  • ✓ Energy systems

Properties

Sensor versions Pt100, 2×Pt100, Pt1000 or 2×Pt1000 (IEC 60751; Pt1000 in class B 1/1 and class A only)
Temperature range -50…+180 °C or -50…+250 °C – special on request
Tolerance classes Class A DIN · Class B 1/1, 1/3, 1/6 and 1/10 DIN (IEC 60751) – special on request
Conductors 2-, 3- or 4-wire (2-wire recommended only for Pt1000)
Measuring insert Interchangeable – replace or calibrate without shutting down the system
Electrical connection Valve plug DIN EN 175301-803-A (formerly DIN 43650-A), PG9 or PG11 (IP65)
Cable Pre-mounted in valve plug: SS, SBS or TBT versions (silicone/PTFE), lengths 2 / 4 / 6 / 10 m – optional
Protective sheath Stainless acid-proof steel EN 1.4571 (AISI 316Ti) as standard – special on request
Sensor diameter Ø8 mm (Ø6 mm with fixed measuring insert) – special on request
Immersion lengths 50 / 80 / 100 / 150 / 200 / 250 mm – special on request
Process attachment ½” or ¼” BSP welded coupling
Ambient conditions Ambient temperature -25…+120 °C · withstands vibrations · quick reaction time
Signal processing Optional enclosure – marine box (112×82×42 mm) or ABS plastic box (82×80×56 mm) – with or without programmable transmitter (2-wire, 4–20 mA)
Standards Mechanical and thermal stress to DIN 43772
Marine approvals DNV, LR, BV, ABS, NK and RINA
