Fitting type MA – AN
Product description
[CONFIGURATOR]
Application:

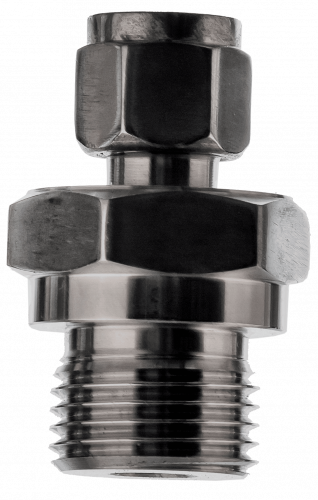

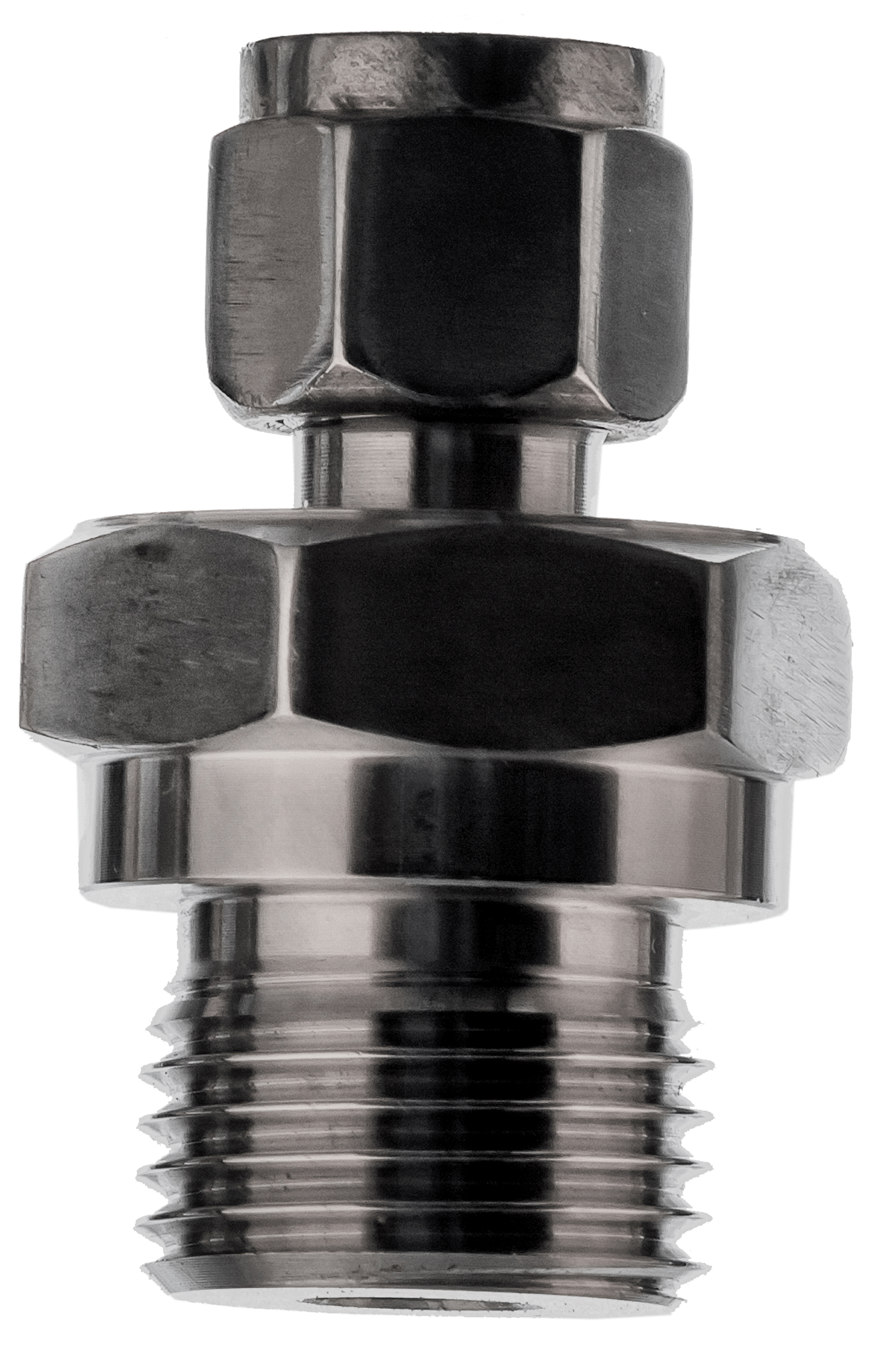

The MA-AN Stainless Steel Compression Fitting is designed for secure and adjustable sensor mounting in industrial environments. It allows easy installation and flexible positioning of thermocouples, RTDs, and other probes by clamping them in place at the required insertion depth.
✔ Flexible Installation – Enables adjustable sensor positioning for precise depth without custom sensor lengths.
✔ Quick Sensor Replacement – Allows fast, tool-free sensor removal and reinstallation when maintenance or replacement is needed.
✔ Versatile Thread & Material Options – Available with various process threads and materials, including stainless steel, brass, and Teflon-sealed options, to match different application needs.
Common use cases:
- Mounting temperature and humidity sensors in ducts, pipes, and tanks
- Securing probes for industrial process monitoring
- Applications where sensor insertion depth may change over time
Properties:
✔ Adjustable Sensor Mounting – Enables flexible insertion depth adjustment for sensors in thermowells and unions.
✔ Secure Fit – Provides a firm grip around sensors to keep them stable during operation.
✔ Multiple Material Options – Available in stainless steel (AISI 316Ti), brass, and steel for different application needs.
✔ Compatible with Various Sensor Diameters – Supports Ø6mm to Ø12mm with custom sizes available.
✔ Process Thread Options – Offered in 1/4” BSP (Ø8mm max) and 1/2” BSP (Ø15mm max) with custom threads on request.
✔ Compression Sealing Choices – Available with Teflon or steel compression fittings for added versatility.
